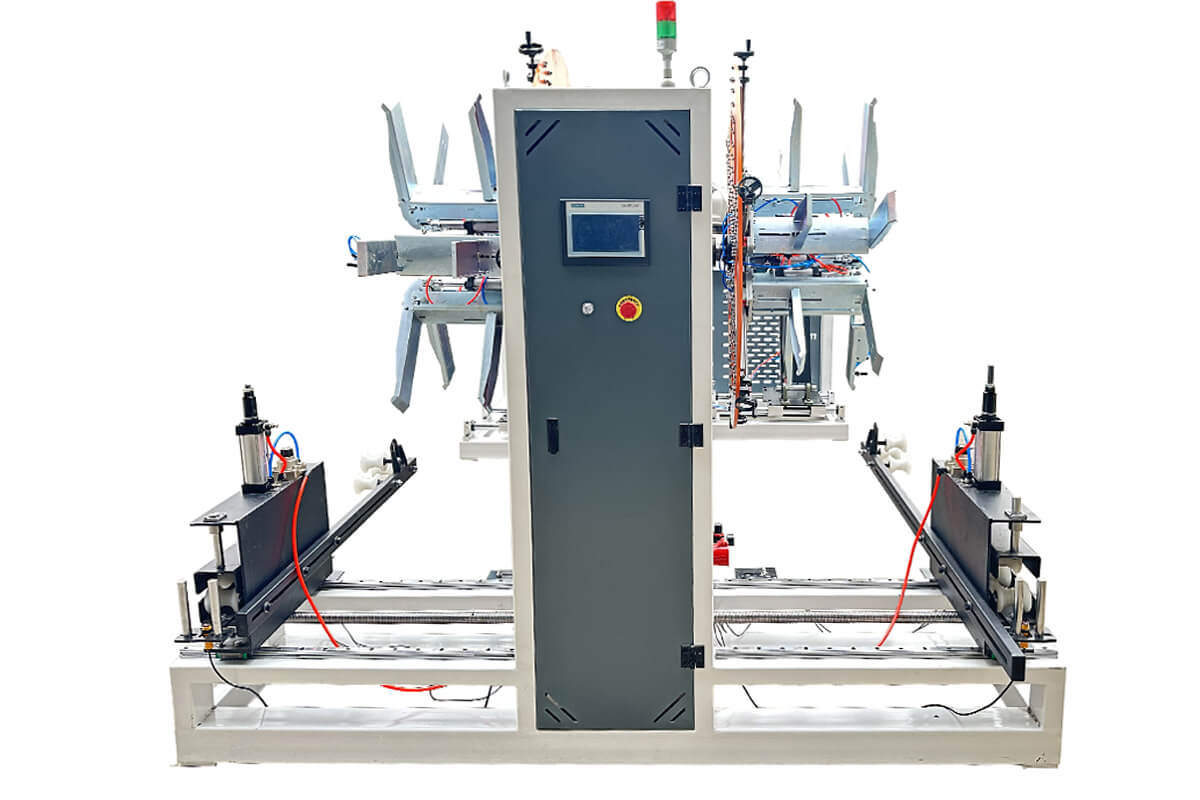

Double Station Plastic Hose Coiling Machine
+25% Output Efficlency
-15% Energy Consumption
99.6% Stable Operation Rate
Why our machinery stands out
- Continuous Non-Stop Coiling: Dual winding stations alternate position seamlessly, allowing operators to unload finished coils safely without pausing the main extrusion line.
- Tension-Safe Torque Control: Advanced magnetic particle clutches or servo torque controls automatically lower rotational force as the coil grows, preventing hot, sensitive hoses from stretching or collapsing.
- Flawless Layer Alignment: Precise servo-driven traversing units guide the running pipe evenly from side to side, eliminating loose gaps and overlapping knots.

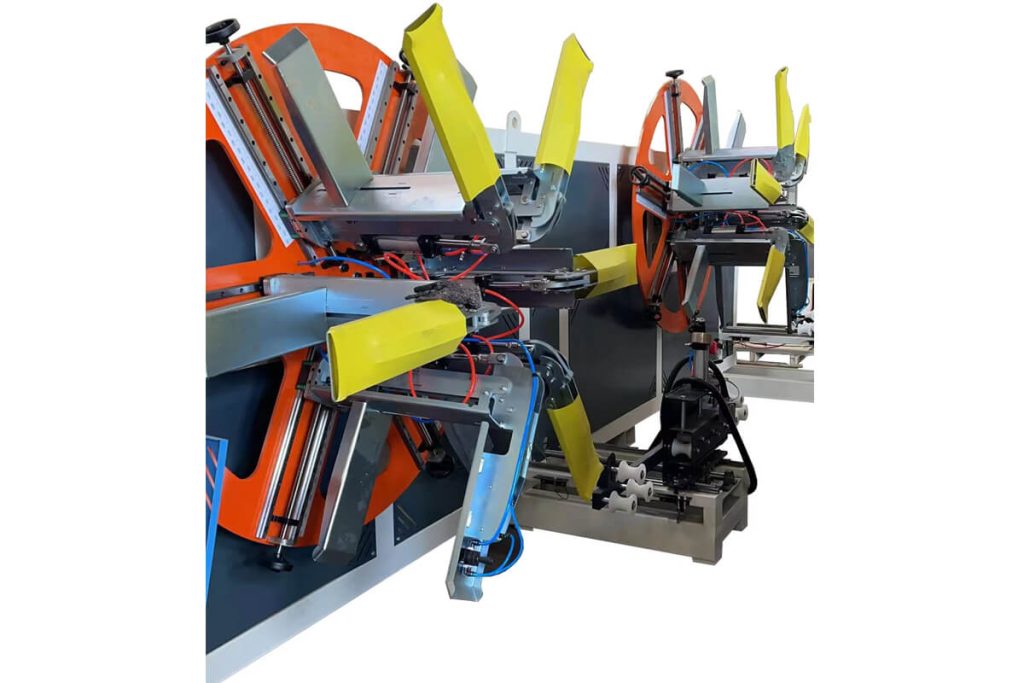

- Rapid Pneumatic Expanding: Robust pneumatic cylinders expand the core arms to lock the pipe instantly and collapse inward for lightning-fast, tool-free coil removal.

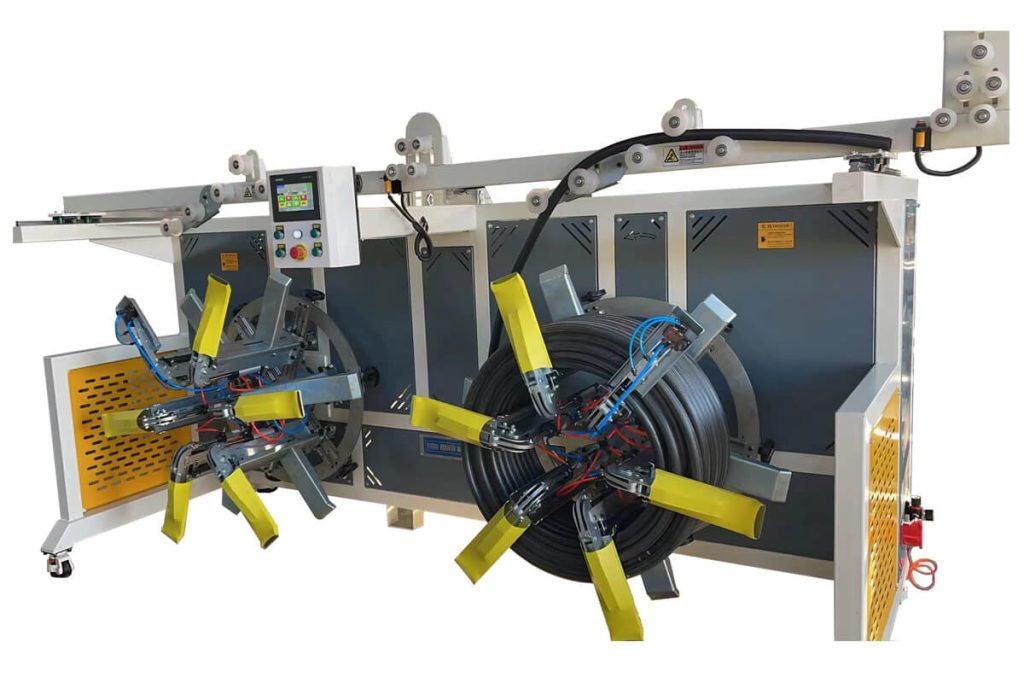

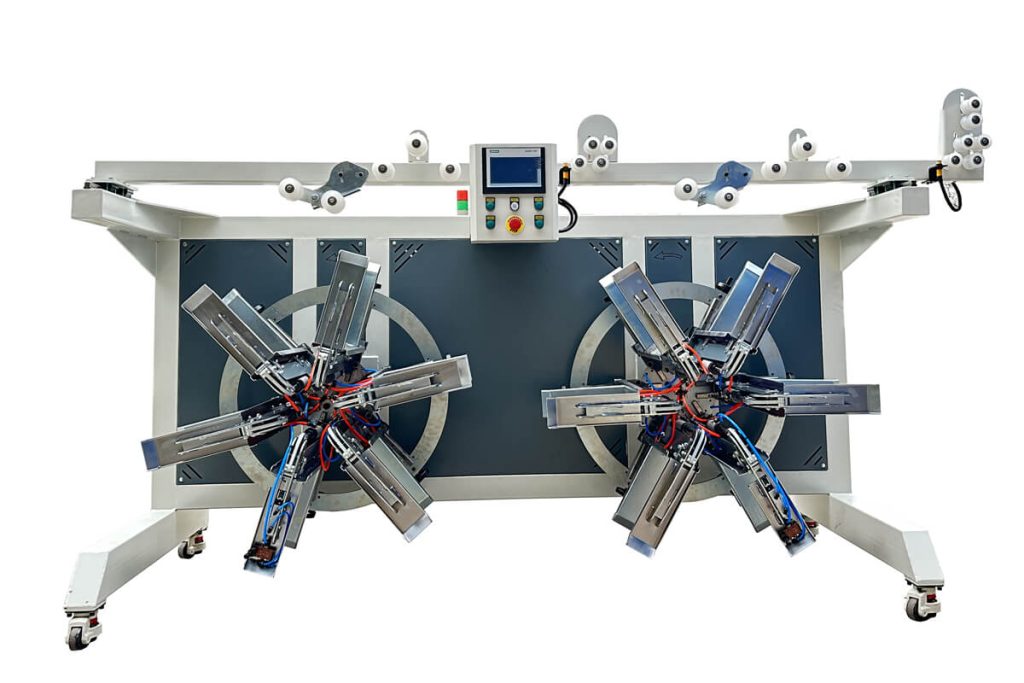

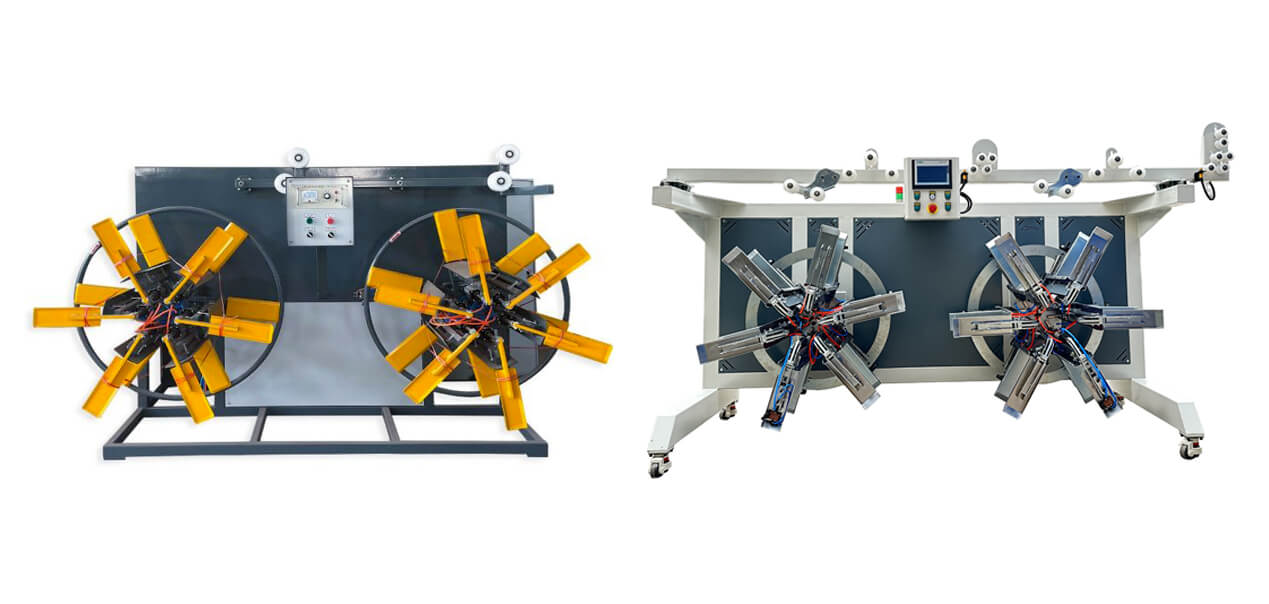

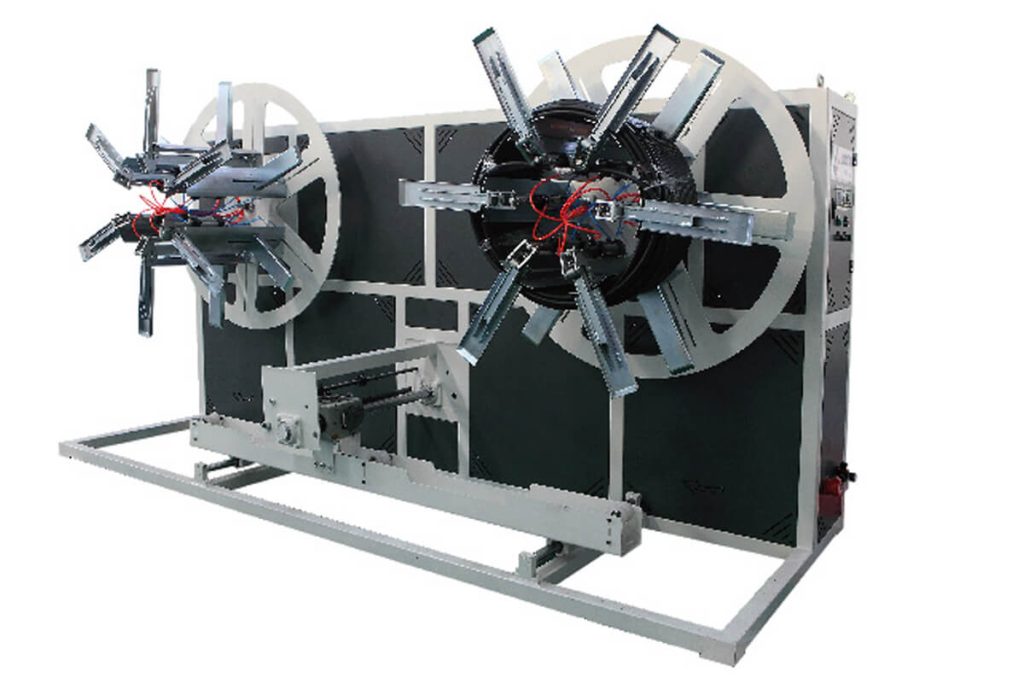

The MIDTECH Plastic Soft Pipe Double Station Winder is a high-speed, fully automated downstream coiling solution engineered for flexible plastic pipe production lines. It is widely utilized to wrap PVC garden hoses, PE gas/water coils, PERT underfloor heating tubes, PPR aluminum-plastic composite pipes, and flexible plastic corrugated conduits.
Parameter
| Model | 20-40 single station | 20-40 double station | 20-63 single station | 20-63 double station | 63-110 single station |
|---|---|---|---|---|---|
| Pipe diameter range | 20-40 | 20-40 | 20-63 | 20-63 | 63-110 |
| Max winding speed | 16 m/min | 16 m/min | 12 m/min | 12 m/min | 5.5 m/min |
| Coiler Inner diameter | 0.58-1.2 | 0.58-1.2 | 0.58-1.8 | 0.58-1.6 | 1.6-2 |
| Coiler max outer diameter | 1.8 | 1.8 | 2.7 | 2.2 | 3.1 |
Core Advantages
Winder
Twin-station, 16-110mm, 24/7.
Twin-station swap, zero-stop, safe.
Mag clutch, anti-stretch, dancer.
Servo traverse, pitch, auto-rev.
YOUR PARTNER IN PLASTIC PROCESSING
Midtech transforms plastics into possibilitles.
ConticLus today tarlormereebuut our torpliele pluasli processing solutions.
FAQ
Why choose a double-station winder over a single-station winder for flexible pipes?
In high-speed flexible pipe extrusion lines, the extruder cannot be stopped. With a single-station winder, operators must slow down the entire line or work under extreme stress to cut the pipe, remove the finished coil, and tie the new pipe to the reel. The Double-Station Winder eliminates this issue completely. When a coil is full, the line switches to the empty station automatically, giving the operator ample time to safely unload the finished coil with zero line interruptions.
How does the machine prevent thin-walled soft hoses from being crushed or ovalized during winding?
Winding soft hoses too tightly causes the inner layers to crush or lose their round shape. MIDTECH addresses this by combining an integrated accumulator dancer arm with automatic torque calibration. As the coil diameter increases, the system senses the change and automatically lowers the winding torque. This maintains a light, consistent winding tension that keeps the pipe neatly coiled without applying crushing pressure to the inner rows.
What types of flexible plastic pipes can this double-station machine handle?
The machine is highly versatile and accommodates a broad spectrum of flexible materials. It is the perfect choice for rigid-yet-flexible coils like PE water pipes, PERT floor heating lines, and PPR conduits, as well as highly flexible formulations like soft PVC braided hoses, PU tubing, and flexible plastic corrugated hoses. Swapping between different materials is easily handled via the digital tension and pitch adjustments on the control screen.
