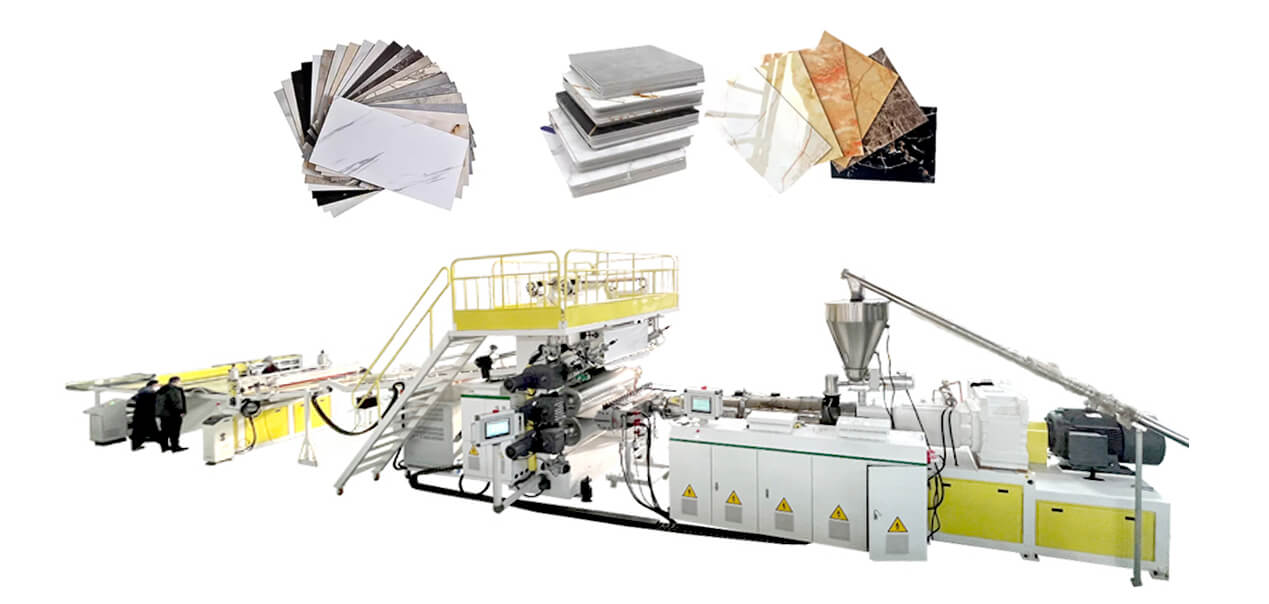

PVC Marble Sheet Extrusion Line
+25% Output Efficlency
-15% Energy Consumption
99.6% Stable Operation Rate
Why our sheet extruder stands out
- Adopting integrated calendering technology guarantees PVC sheet thickness uniformity and smooth surface.
- Conical twin screw extruder ensures efficient material plasticization.
- The one-step forming extrusion process enhances production efficiency and product consistency, making it ideal for high-quality decorative marble sheet manufacturing.
- Integrated PLC control systems enable real-time monitoring, quick parameter adjustments, and fault diagnostics, reducing downtime and operator dependency for stable, continuous operation.
Parameter
| Model | Power | Capacity | Max thickness |
|---|---|---|---|
| MT80/156 | 75kw | 400-450kg/h | 1-8mm |
| MT92/188 | 90kw | 650-700kg/h | 1-8mm |
Core Advantages

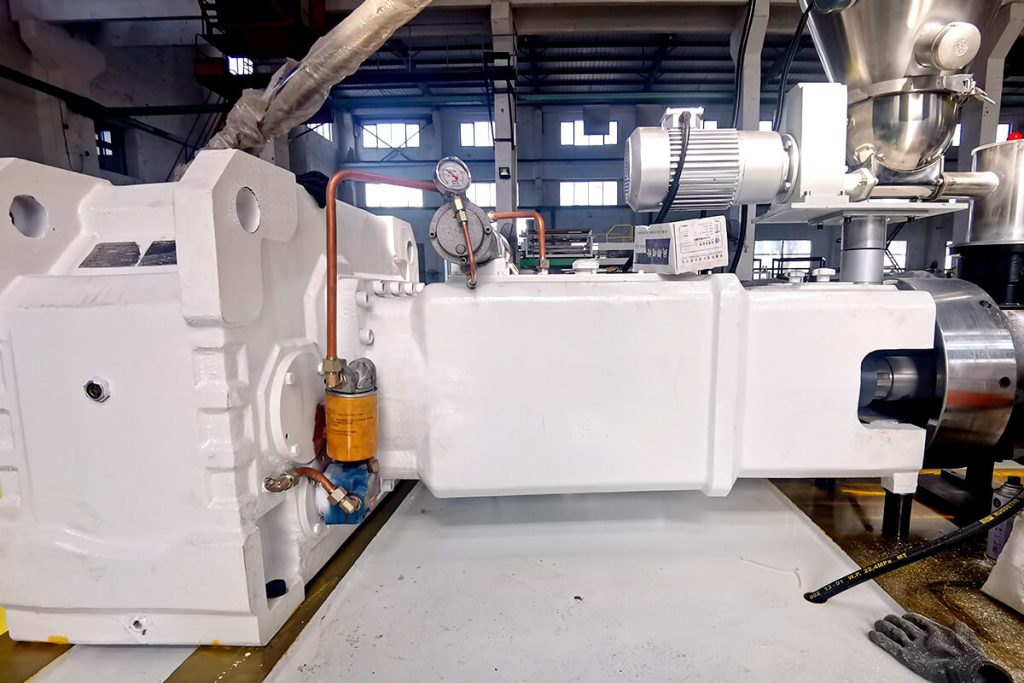

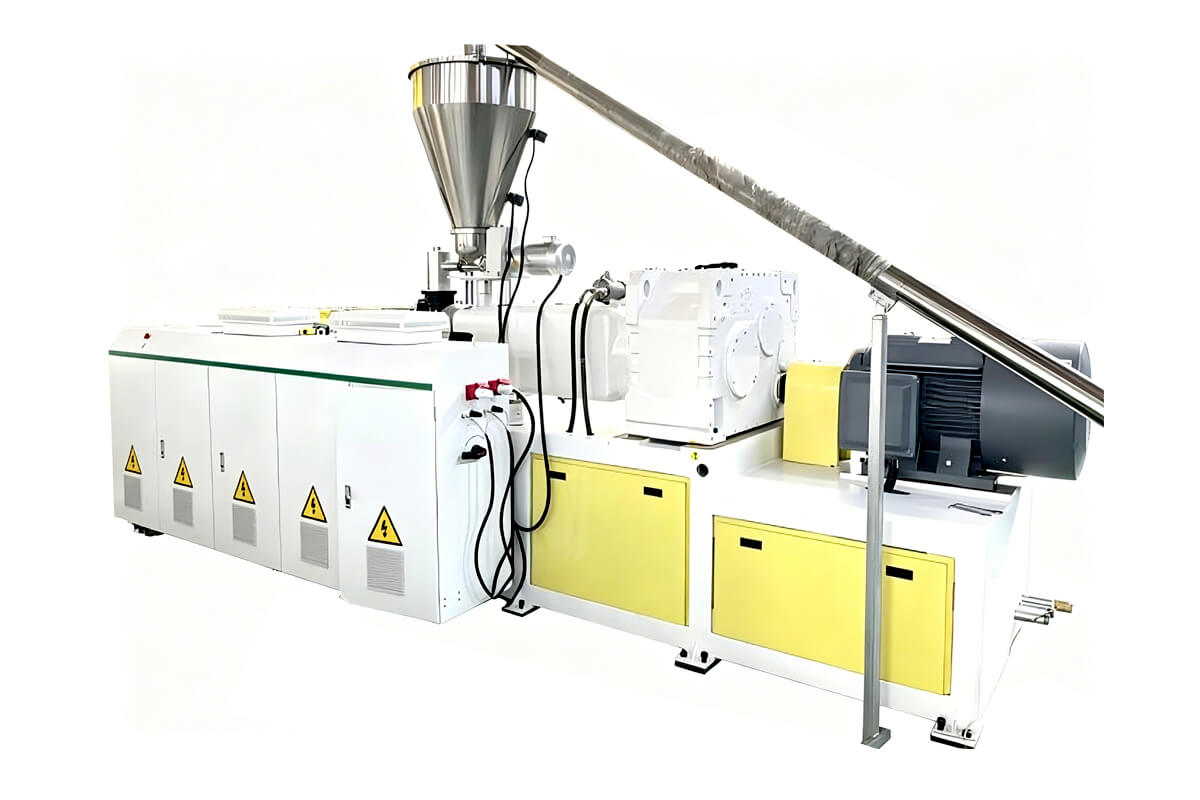

Extruder
World famous brand electrical component such as Siemens, Schneider, WEG，LS etc.
High torque gearbox with adopts NSK/SKF bearing;
Special design of screw screw and barrel suit for high calcium.

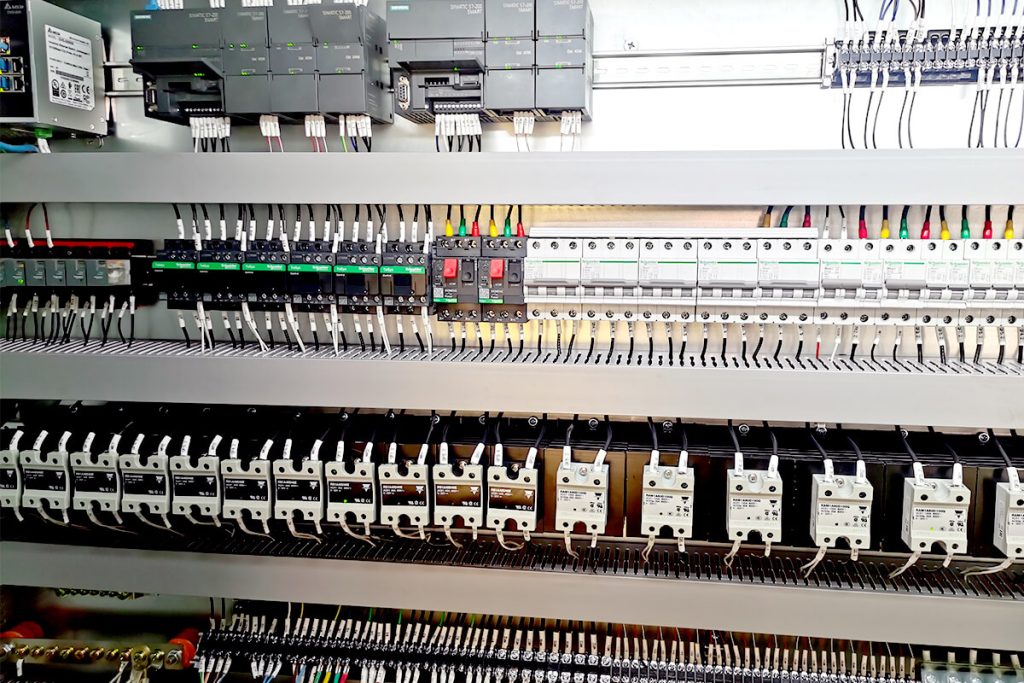

Intelligent PLC controlling system with human-friendly interface.

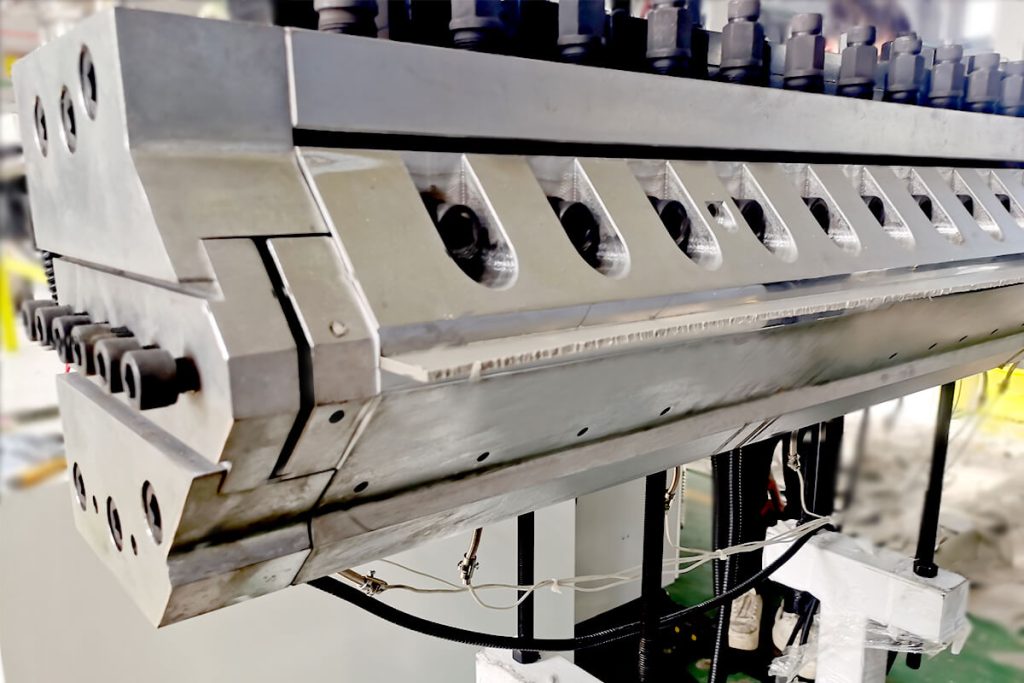

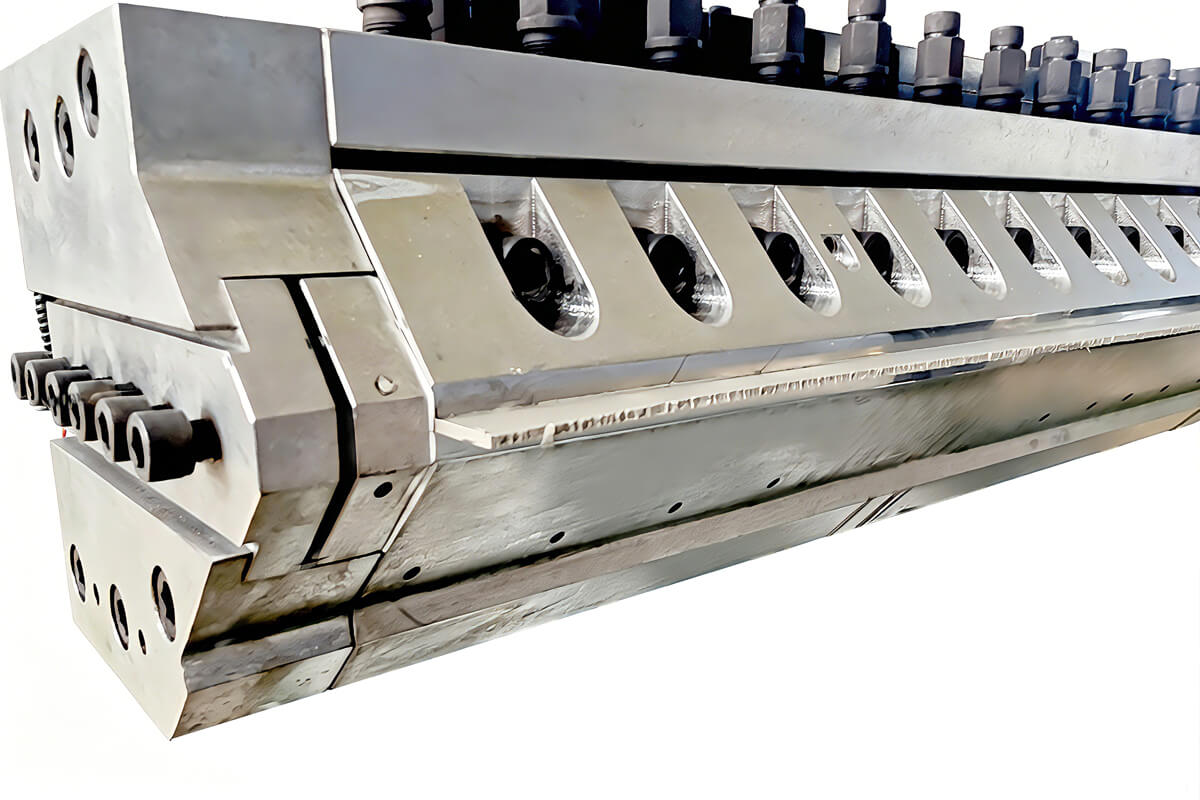

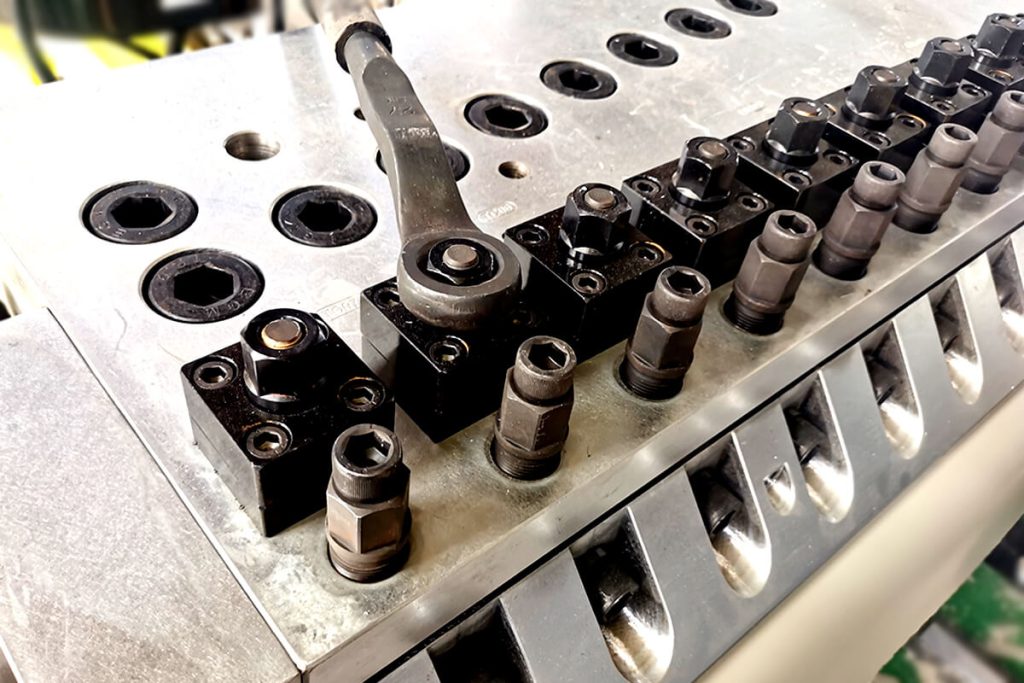

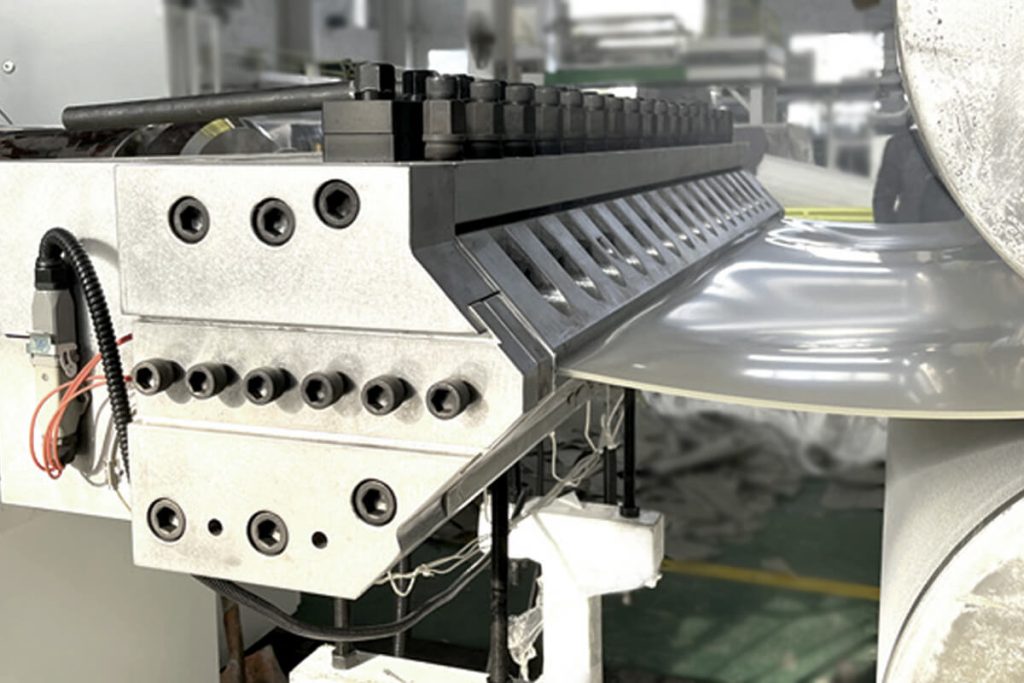

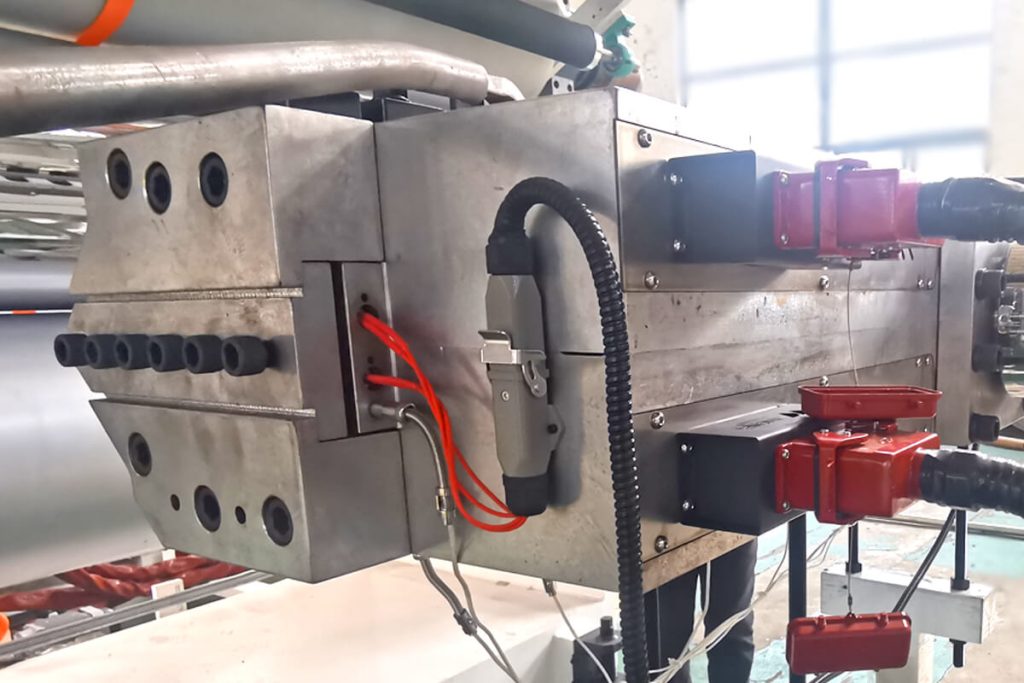

Mould
T type mould Hanger flow passage.
PVC-friendly mold materials reduce wear and sticking, lowering cleaning and repair frequency.
Maintains precise thickness and flatness even under continuous high-speed operation.
Offers excellent thermal stability for long, stable operation.

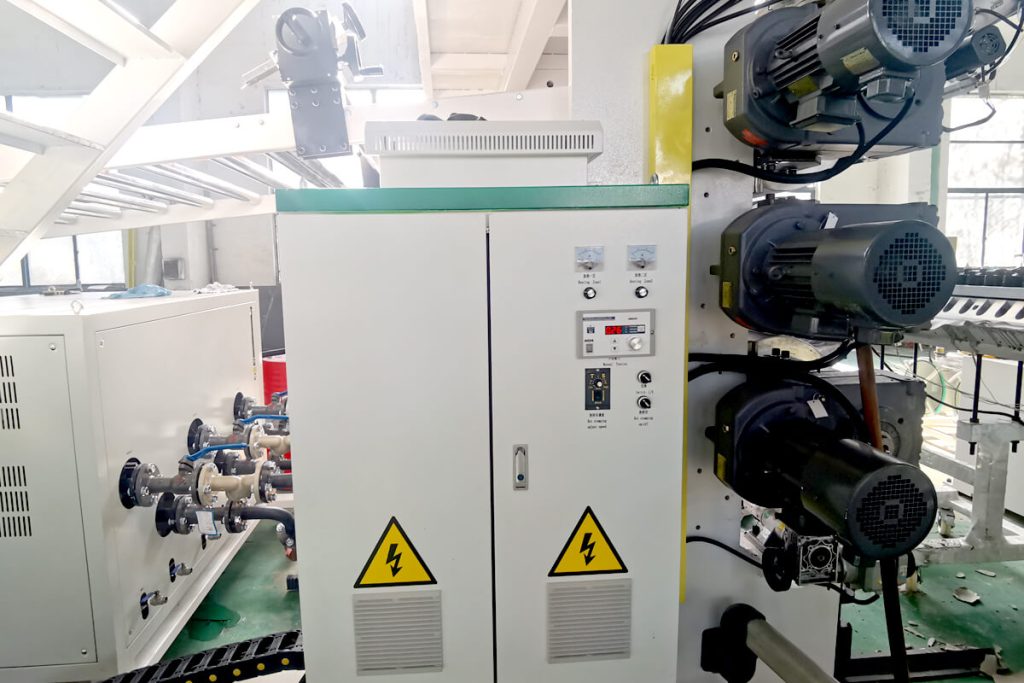

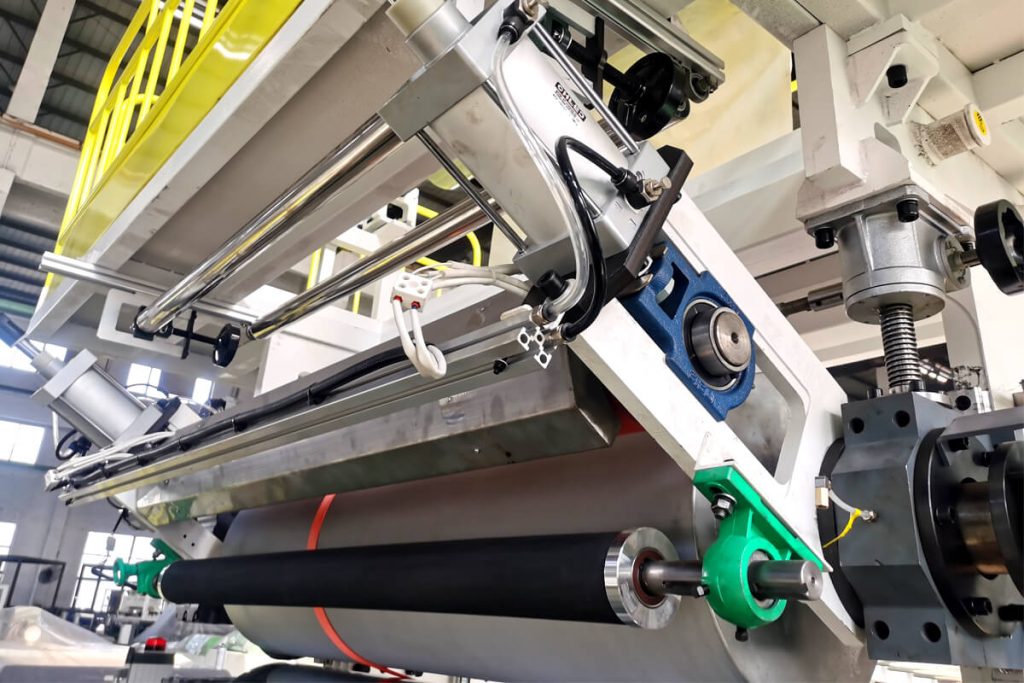

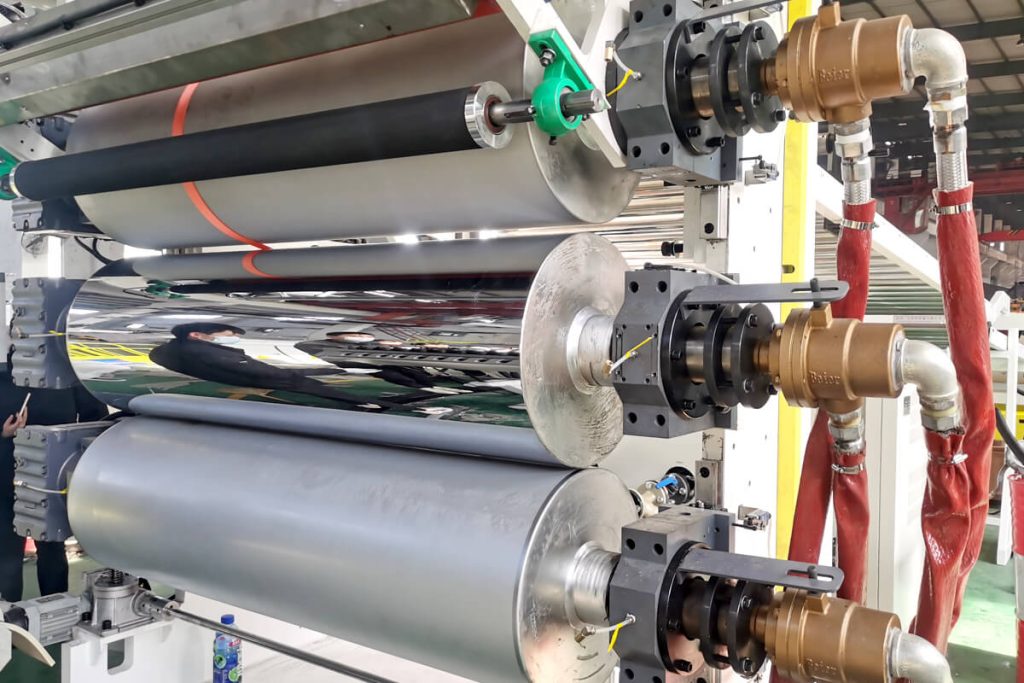

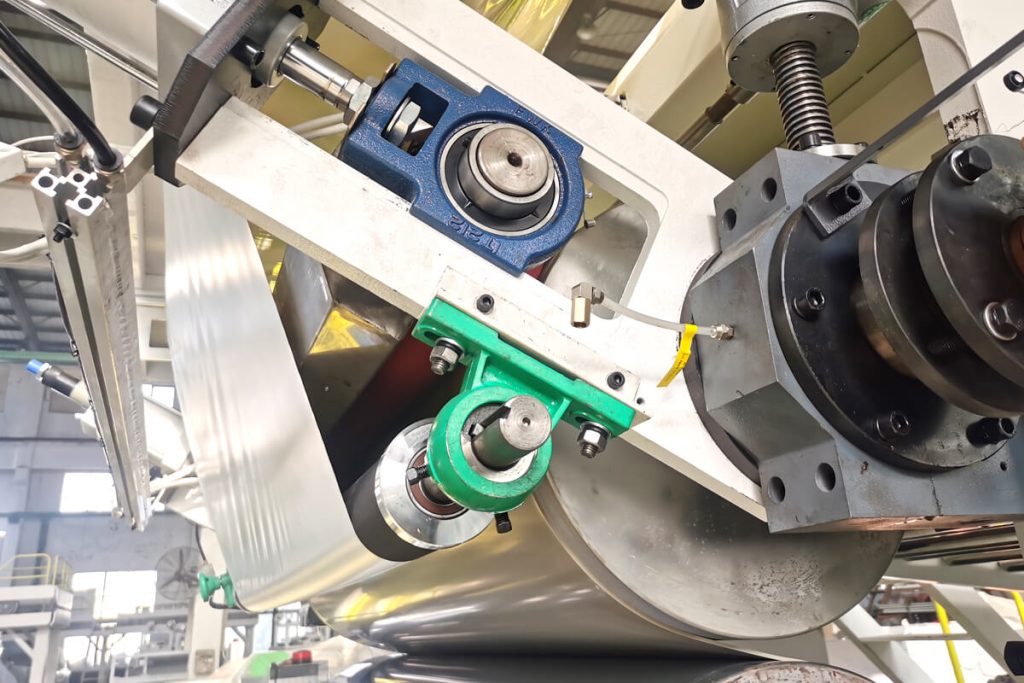

Three-Roll Polishing Stack
Multiple sets of heat-conducting oil-controlled calendering rolls precisely control.
Enable online embossing and lamination synchronization.
A synchronous control system matches the calender speed with the downstream puller.
Roll gaps can be adjusted electrically or manually. An emergency stop device allows quick stop.

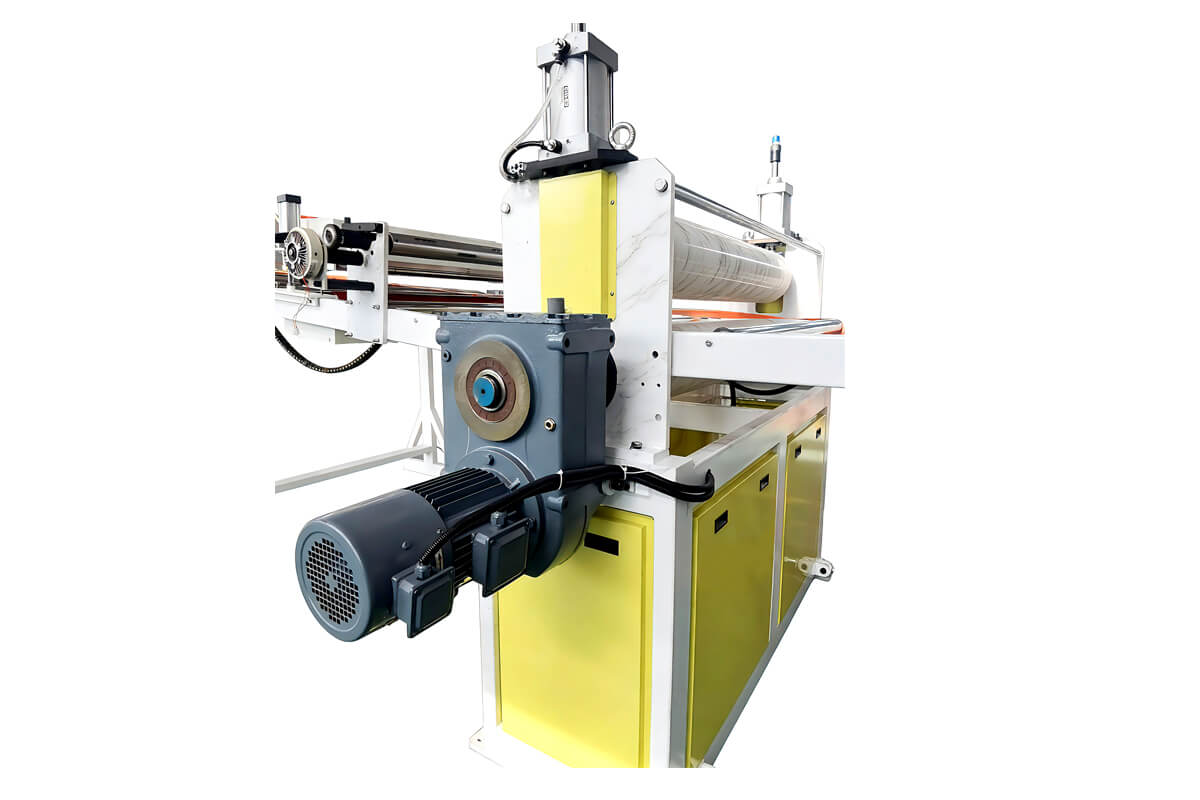

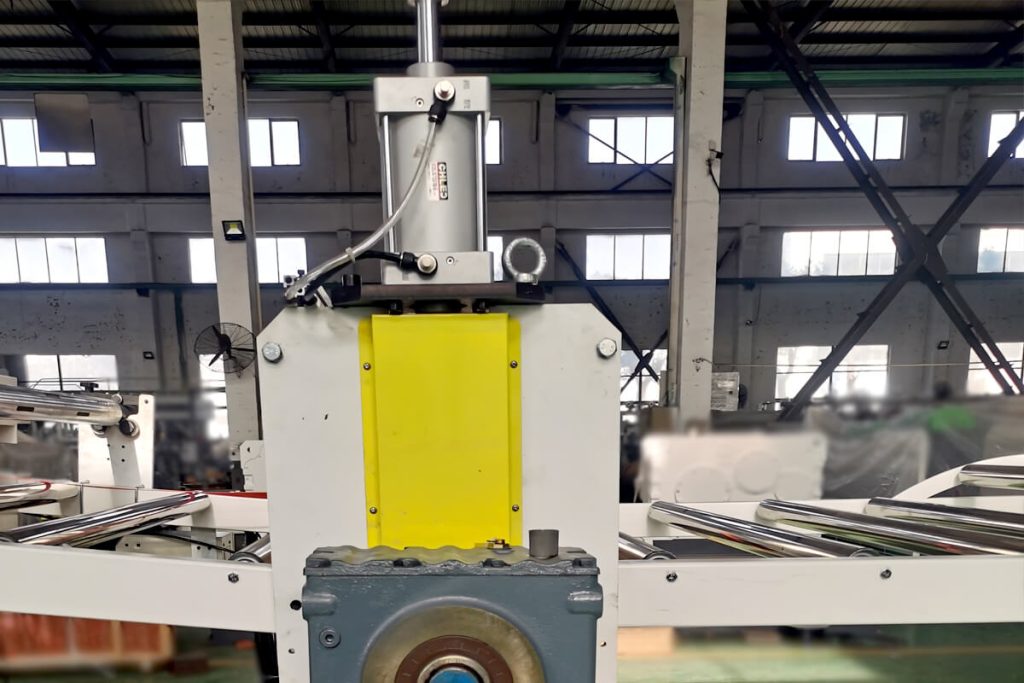

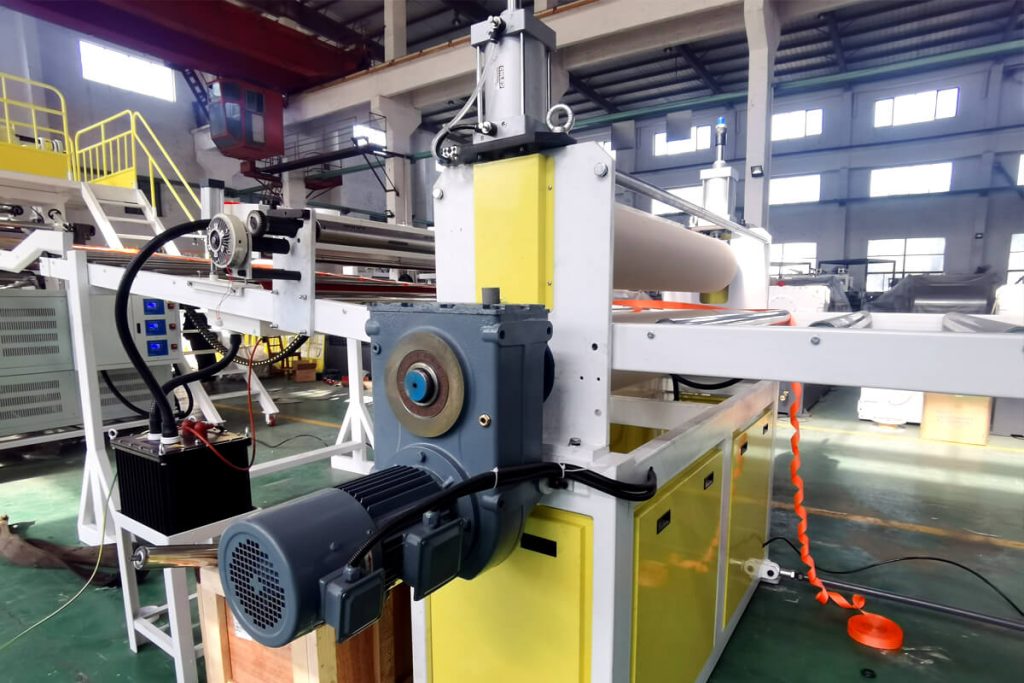

Haul Off
Heavy-duty frame ensures stable, vibration-free operation.
Complete stable traction, fixed-length cutting.
Provides excellent grip and prevents slippage of materials,
Provides excellent grip and prevents slippage of materials.

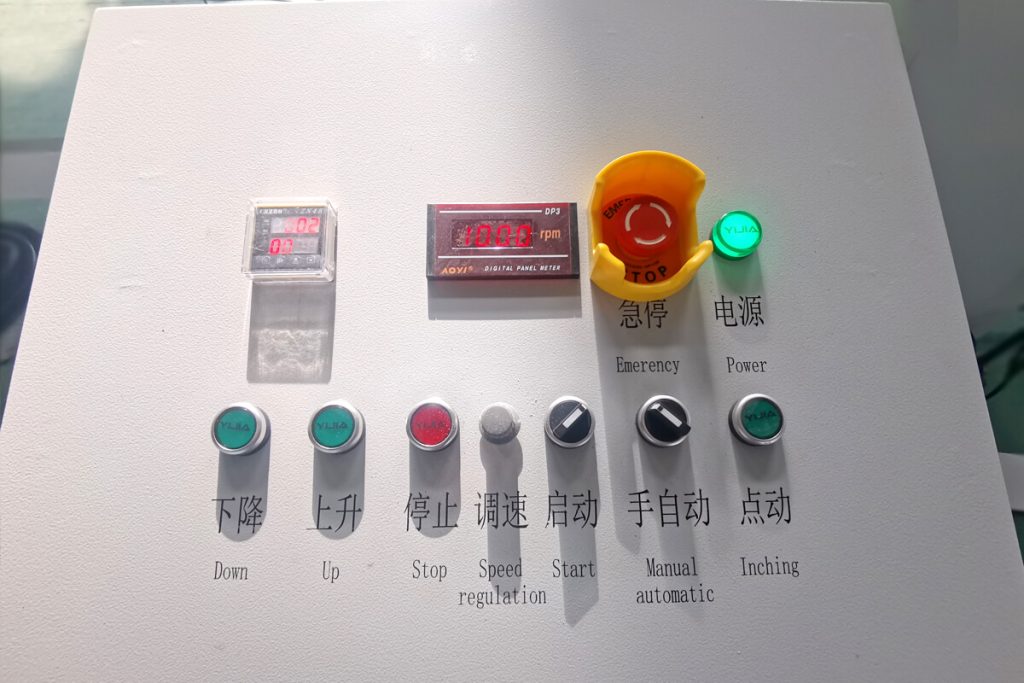

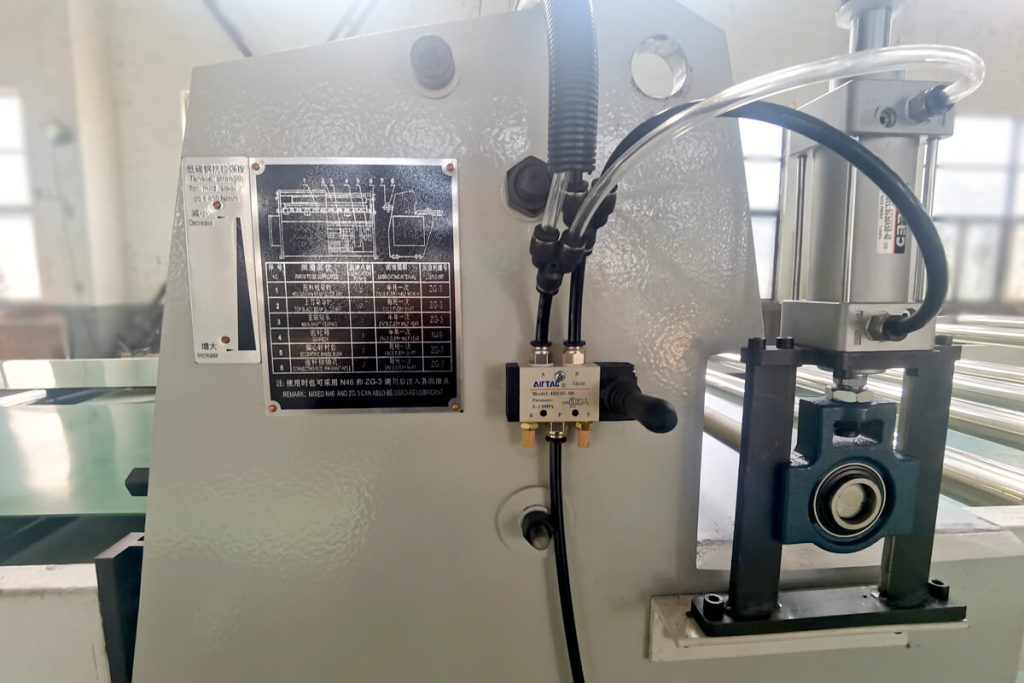

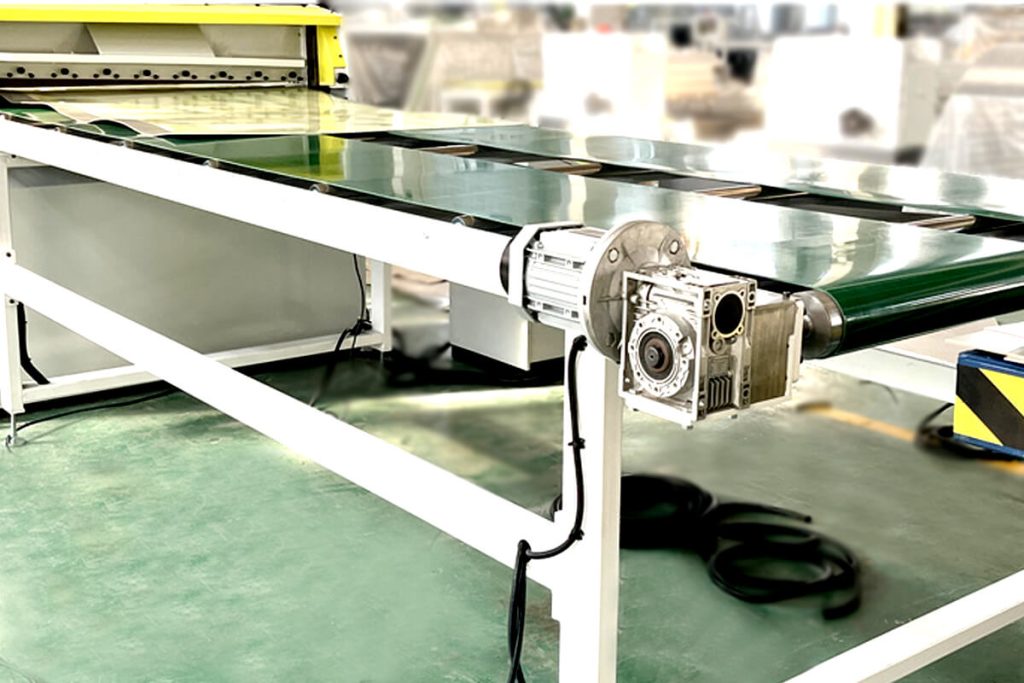

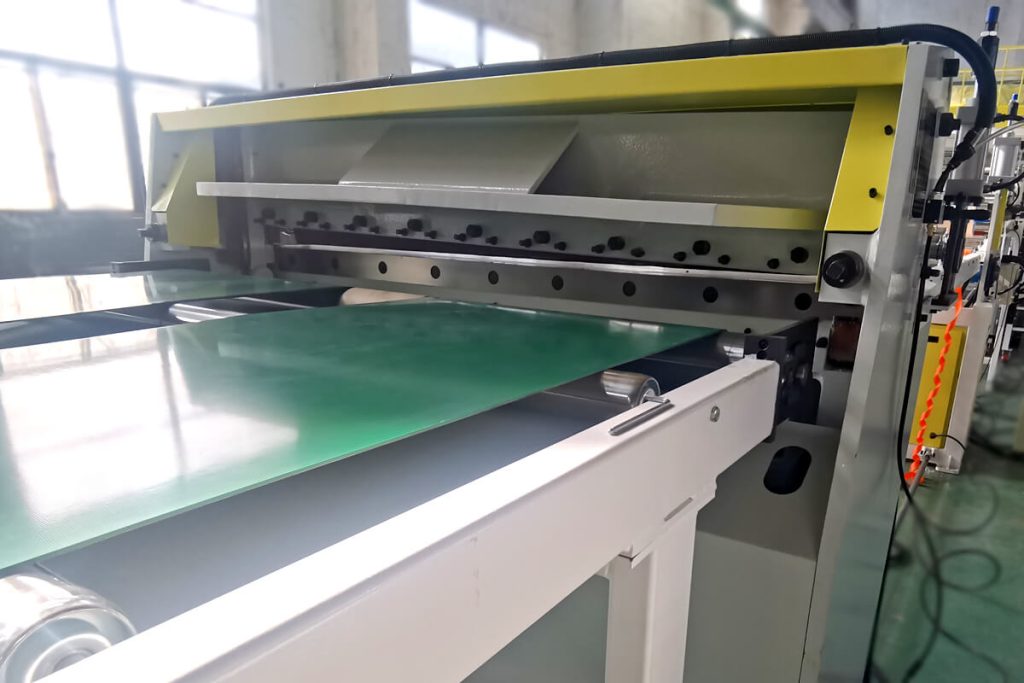

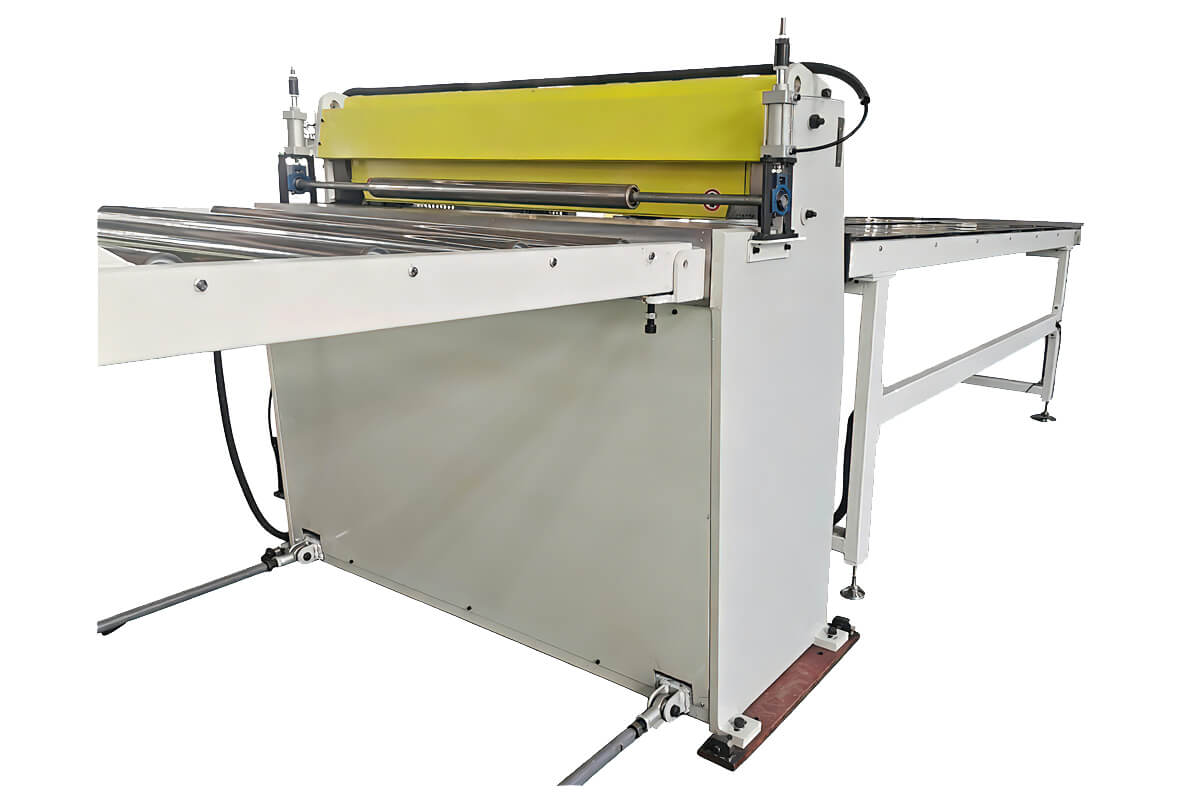

Cutter
The shear cutter is controlled by a servo motor.
With controllable cutting length.
High cutting accuracy and stable cutting process.
Fully enclosed or guarded cutting zone with automatic operation.
YOUR PARTNER IN PLASTIC PROCESSING
Midtech transforms plastics into possibilitles.
ConticLus today tarlormereebuut our torpliele pluasli processing solutions.
FAQ
What is a PVC marble sheet?
What are the main components of the production line?
The complete line includes: high-speed mixer & cold mixer → conical twin-screw extruder → T-shaped die → three-roller calender (with lamination station) → cooling rollers → haul-off & trimming unit → shearing/cutting machine → automatic stacker. An optional UV coating line adds gloss and durability.
